Note:

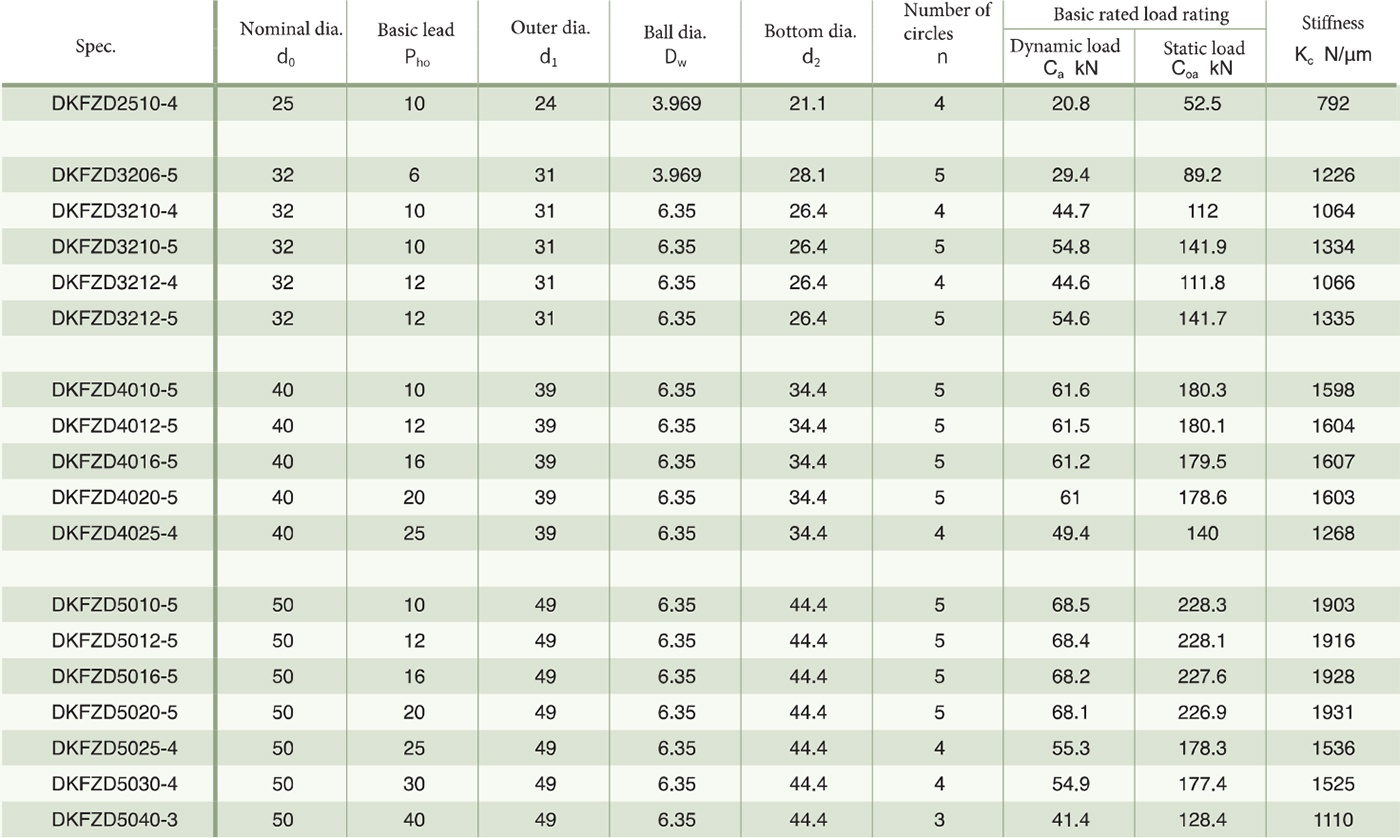

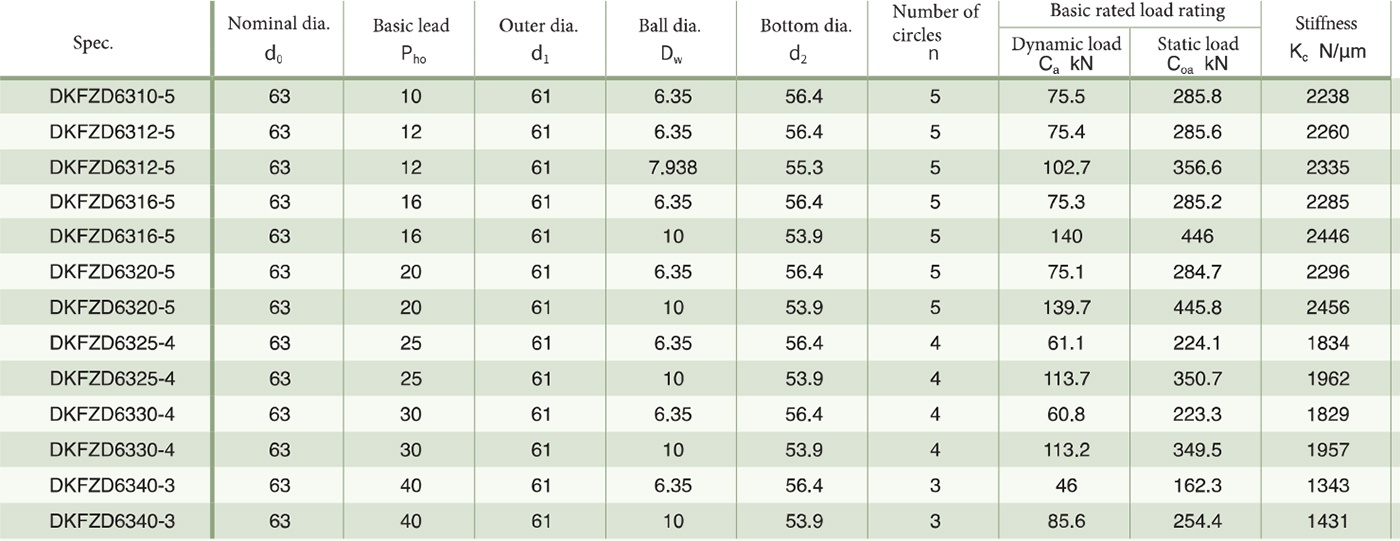

1) Kc is theoretical calculation value when preload Fp is 0.1Ca and axial load F is 0.3Ca.

2) When axial load F is not equal to 0,3Ca,

In formula:

K is stiffness value in the table

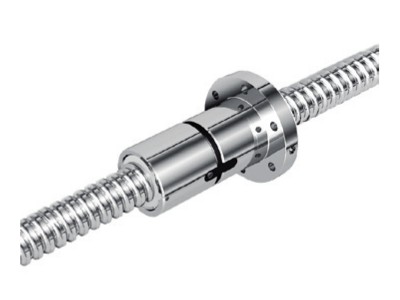

3) This ball screw is used for high speed;

4) W orking temperature:土80 C ;

5) If you have special request, please tell us.
